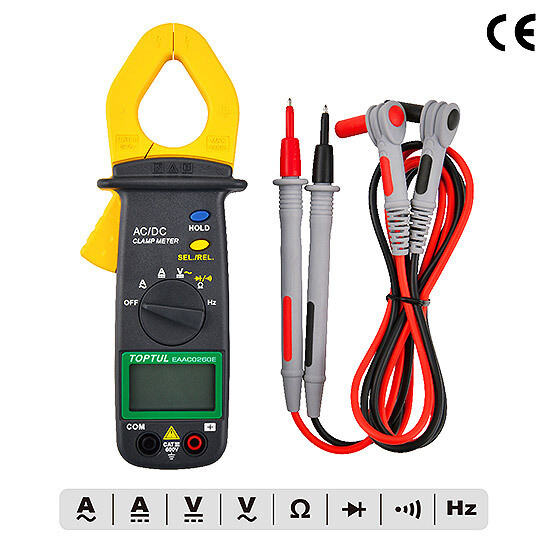

TOPTUL - Digital Clamp Meter

+4

+3

+2

TOPTUL - Digital Clamp Meter

SKU EAAC0260E

AU$246.30

In stock: 1 available

Quantity:

1

Product Details

TOPTUL Digital Clamp Meter

Description

Digital clamp meter with basic measuring functions
Test lead set with test tip (red/black)
Central dial switch
Large LCD with 3-3/4 digit display 4000 counts
Max. diameter for clamp jaw: Ø30mm
Low battery indicator and auto shut off (after 30 minutes)
Additional Features: Data hold, auto range, auto power off selection

Functions

AC and DC voltage measurement
AC and DC current measurement
Resistance measurement
Diode test
Continuity test with buzzer
Frequency measurement

Specifications

AC Voltage	4V / 40V / 400V / 600V
DC Voltage	400mV / 4V / 40V / 400V / 600V
Resistance	400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
AC Current	400A / 600A
DC Current	400A / 600A
Diode	1V
Continuity Check	400Ω
Hz Frequency	5Hz / 50Hz / 500Hz / 5kHz / 50kHz /100kHz
Operating Environment	0 ~ 50°C (32 ~ 122°F) at < 80% R.H. (non-condensing)
Storage Environment	-10 ~ 60°C (14 ~ 140°F) at < 70% R.H. (non-condensing)
Operating Altitude	Altitude up to 2000m
Power Supply	Battery 1.5V AAA x 2 pcs (included)
Testing Standard	IEC 61010-1 / IEC 61010-2-032 / IEC 61010-2-033
Measurement Category	CAT Ⅲ 600V
Pollution Degree	2
Dimension	190mm (L) x 71mm (W) x 37mm (H)
Weight	Approx. 200g
