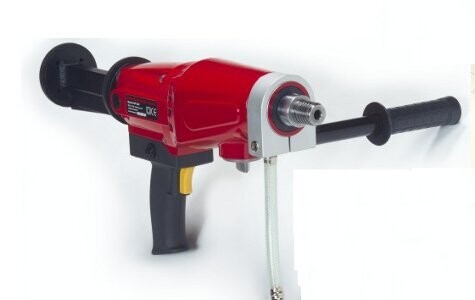

The DF330 is the bigger brother of the DF320. With an optional stand (DR120), the DF330 can core drill up to 120mm (5″) diameter holes.
It comes with the same powerful 1.35kw motor.
However for larger core sizes, the DF330 comes with a two speed gear box and fitting for a drill stand.
This makes the DF330 ideal for trades such as Air Conditioning, Fencing, Building and general construction, Cabling.
The efficiency and attention to detail in the design of the motor and gear box, means the DF330 does not require a 3 speed gear box – unlike less sophisticated brands. This design also makes the DF330 lighter.
The patented telescopic arms make drilling safe and more comfortable – “lean into” or “rest on” the unit with the telescopic arm using our body weight and not your back!
We recommend tradies also purchase the optional Stand, Vacuum Pump and Vacuum Base to save time and money on the job. On the right surfaces, the vacuum base and pump save bolt-holes to anchor the stand.
Key safety features include prevention of electric shock by:
Double insulation on motor
Insulated Handle
Insulated Telescopic arm
Earth leakage trip switch
To further protect the operator and unit, the DF330 also comes standard with:
Slip-clutch – protects operator, motor and gearbox. Clutch is easily adjustable to extend the life of the core drill
Motor overload protector – protects motor and gearbox.
Soft start – extends the life of the gearbox and motor
